16ch 5in1 4k/8mp Dvr H.265+ Digital Video Recorder

4K 8MP 16CH AHD CCTV DVR 6in1 AHD TVI CVI CVBS IP Camera Hybrid Digital Video Recorder Home Security DVR CCTV System XMeye H.265

**HDD NOT Included**

Main Features:

• H.265 16CH AHD Digital Video Recorder;
• Ultra HD 4K High Definition Display, Advanced H.265 Video Compression;
• Support Face Detection, Face Record, Face Playback;
• Support CVBS,AHD,TVI,CVI ,XVI,IP ,6 in 1 Hybrid input;
• Support HDMI&VGA Output, Audio Input & Audio Output;
• Support 3.5"inch Hard Drive,2*SATA Port, Support Max 2*14TB HDD;
• Support Motion Detection, Email Alerts, Video Playback, Multi-Language;

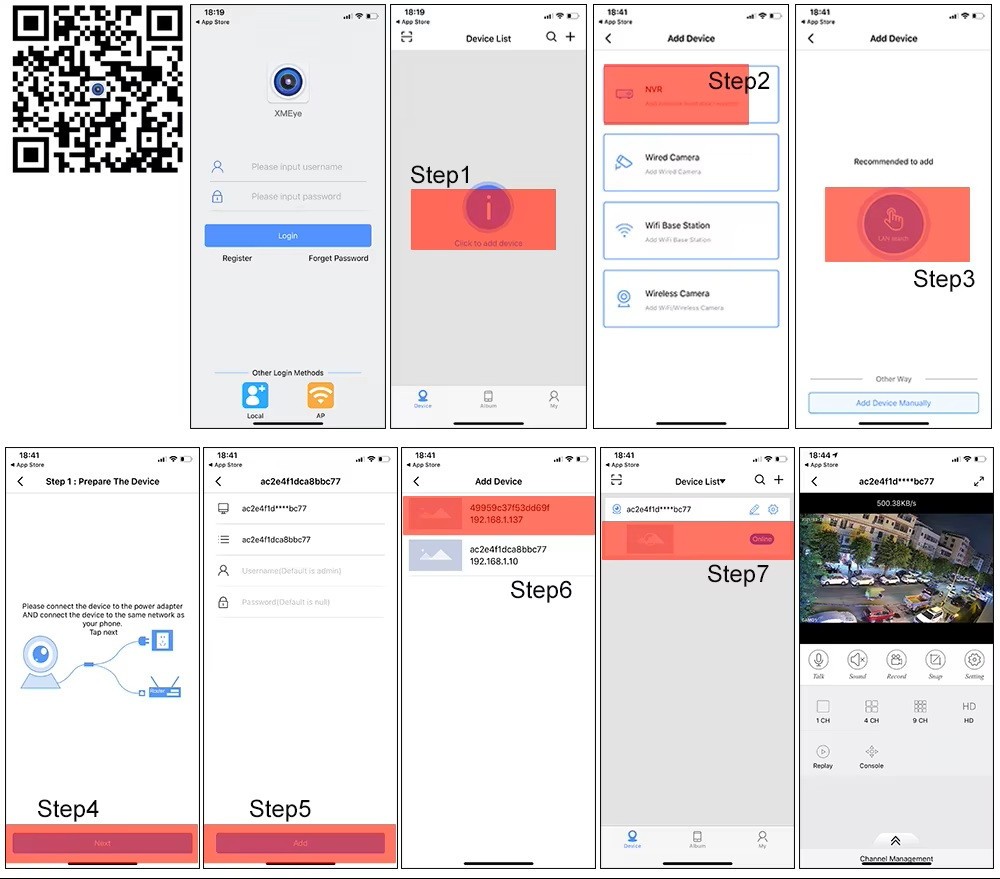

• Support Android,iOS,,PC,CMS,VMS,P2P view; (XMEYE or ICSEE)
• Support Plug and Play ,Easy to Setup;
• Remote Access Anywhere, Anytime;

Package list:

1 X H.265 16CH 4K 6 IN 1 AHD DVR Hybrid Digital Video Recorder;
1 x Power Supply for DVR;
1 X USB Mouse for DVR;

SystemModel

16CH

Chip

NT98336

Preview

1/4/8/9/16

VideoVideo input

16CH BNC

Codec

H.265+/H.264

DisplayQuality

Max 4K

PreView

Quality

16*[email protected](6 in 1)(XVI)

16*[email protected](6 in 1)(XVI)

4M 15fps/3M 18fps/2MP 25fps(6 in 1)

Default:8M

Encode

Quality

16*8M@4fps(6 in 1)(XVI)

16*5M@6fps(6 in 1)(XVI)

4M 9fps/3M 10fps/2MP 16fps(6 in 1)

Default:8M

DecodeQuality

16*8M@4fps(6 in 1)(XVI)

16*5M@6fps(6 in 1)(XVI)

4M 9fps/3M 10fps/2MP 16fps(6 in 1)

Default:8M

Multi-modeinput

Analog: 16*8M,16*5M

Hybrid: 16*8M(Analog)+16*8M(Network)

Network: 16*8MP; 16*5MP

MotiondetectionEach screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set(Limited local channel)Recording modeManual>Alarm>Dynamic Detection>Timing

Audio

Audio

Compression



711A

Audio Record

Not Support

Intercom

Support

Record &PlaybackSearch modeSearch by time, calendar, event, channelLocal Playback

16CH(Analog input mode)

Backup modeNetwork backup, USB hard disk, USB burner, SATA burnerVideo output1ch VGA,1ch HDMI-Compatible HD outputAudio I/O

2/1

External interface3G/WIFISupport 7601 Adapter (Not include)Network interface1*RJ45 10M/100M Adaptive Ethernet portUSB interface2*USB2.0 ports(Not support the keyboard)HDD2* SATA(Up to 14TB for each disk) (HDD is not include, you can choose)ESATANot SupportPower supply

12V3A

OtherPower Consumption<10W(Without HDD)
